HX60BCR Book Block Corner Rounding Trimmer Automatic Machine for Diary Notebook Board Book and Photo Book Block Corner Trimming

Name: HX60BCR Book Block Corner Rounding Trimmer Automatic Machine for Diary Notebook Board Book and Photo Book Block Corner Trimming
Brand: HXCP
Price: 29000 USD

Quality HX60BCR Book Block Corner Rounding Trimmer Automatic Machine for Diary Notebook Board Book and Photo Book Block Corner Trimming for sale

Model Number : HX60BCR

Power : 0.75kw

MOQ : 1 set

Delivery Time : 30 work days

Rated Voltage : 380v

Price : USD 29000 per set

Maximum Width : 60mm

Place of Origin : China

Product Type : Trimming Machine

Packaging Details : Stretch Film with Wooden Case

Application : Book Binding

Supply Ability : 30 sets/month

Model : HX60BCR

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Maximum Length : 420mm

Speed : 170pcs/min

Paperboard Thickness : 1-5mm

Warranty : 1 Year

Certification : CE

Brand Name : HXCP

Dimensions : 850×1100×1400mm

Material : Book Bloclk, Board Book

Contact Now

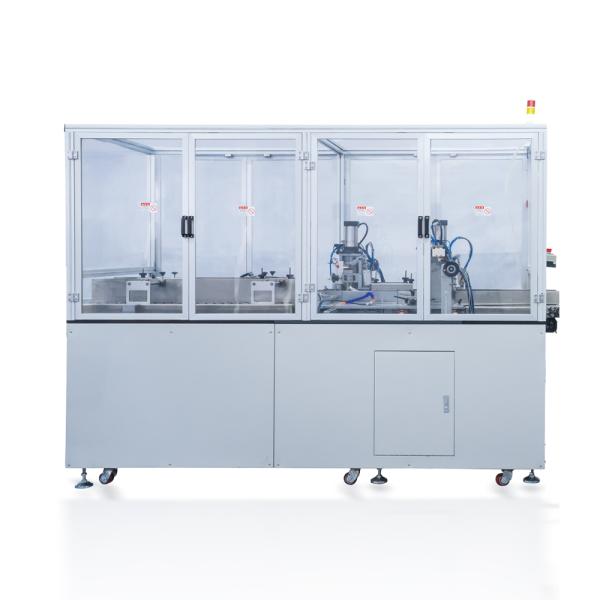

HX60BCR Automatic Book Block Corner Rounding Trimming Machine

Description

HX60BCR Automatic High Speed Book Block Round Corner Trimming Machine is your ideal high productivity machine for the diary, notebook, perfect binding book, board book, and photo book's book block round corner trimming, can be connected with the three-knife trimmer, after the three-side trimmer, the book block will be sent to the trimmer stack with the automatic feeder, patented precise single-angle positioning trimmer system allows the book block's round corner is precise and smooth, and the corner mold is easy to change, automatic counting and stacking, all process is hand free and high efficiency, the speed can be 35cuts/min.

HX60BCR Book Block Corner Rounding Trimmer Automatic Machine for Diary Notebook Board Book and Photo Book Block Corner Trimming

MBO Stahl Paper Folder Paper Folding Machine CP GUK trifold for sale operator second hand used new manufacturer made in china shoie horizon Heidelberg Komori buckle leaflet brochure bookbinding post press auto folder combi combination HXCP Aster sewing machine thread sewing machine muller martini program control book block Smyth Sewn Binding HXCP bible notebook hardcover book case maker case making machine case maker hardcover case rigid box gift box board cardboard case lining hot melt gluing cold glue white glue BDM UNIVERSAL HÖRAUF Kolbus photobook

Parameters

Model Name	HX60BCR
Voltage	380V
*Dimension(LWH)*	33008501600mm
Weight	1000KG
Warranty	1 Year
Max Block Size	H380*W350mm
Min Block Size	H110*W100mm
Speed	30 knife/min
Cutting Thickness	10-150mm
Cutting Method	2 corners/time
Yield	99.5%±0.5%
Conversion Time	15-20min
Gas Source	200L/min @0.5-0.6Mpa
Power	AC220V/3KW

Products Show

HX60BCR Book Block Corner Rounding Trimmer Automatic Machine for Diary Notebook Board Book and Photo Book Block Corner Trimming

Details

FAQ:

Q: What is the brand name of this product?

A: The brand name of this product is HXCP.

Q: Does this product come with any certification?

A: Yes, this product is CE certified.

Q: Where is this product manufactured?

A: This product is manufactured in China.

Q: What is the minimum order quantity for this product?

A: The minimum order quantity for this product is 1 set.

Q: What are the payment terms for this product?

A: The payment terms for this product are L/C, D/A, D/P, T/T, Western Union, and MoneyGram.

Q: What is the supply ability for this product?

A: The supply ability for this product is 10 sets per month.

Q: What is the delivery time for this product?

A: The delivery time for this product is 30 work days.

Q: How is this product packaged?

A: This product is packaged with stretch film and a wooden case.
