HXPS420 Plastic Coil Forming and Binding Machine Suitable for Thick Notebook High Efficiency

Name: HXPS420 Plastic Coil Forming and Binding Machine Suitable for Thick Notebook High Efficiency
Brand: HXCP
Price: 44190 USD

Quality HXPS420 Plastic Coil Forming and Binding Machine Suitable for Thick Notebook High Efficiency for sale

Max Binding Thickness : 23mm (Standard) / 28mm (Customized)

Min Binding Size : 72×72mm

Supply Ability : 3 sets/month

Binding Way : Plastic Coil Binding

Brand Name : HXCP

Binding Speed : Max 800 books/h

Custom Hole Pitch : Supported

Max Binding Size : 420×300mm

Place of Origin : China

Delivery Time : 30 work days

Model Number : HXPS420

Packaging Details : Vacuum packing with export wooden case.

Power Supply : 3Ph 380V, 8KW

MOQ : 1 set

Standard Hole Pitch : 6.35mm (4-1 pitch) / 8.47mm (3-1 pitch)

Price : USD 44190per set

Coil Forming : Forming the Plastic Coil Diameter by Interchangeable Tools

Air Pressure : 5-8 kgf

Payment Terms : T/T

Coil Diameter Range : Parameter Binding WayPlastic Coil BindingBinding MaterialPVC Plastic CoilMax Binding Size420×300mmMin Binding Size72×72mmMax Binding Thickness23mm (Standard) / 28mm (Customized)Binding SpeedMax 800 books/hCoil FormingForming the Plastic Coil Diameter by In

Contact Now

HXPS420 Plastic Spiral Coil Forming and Binding Machine High Efficiency HXPS420 Plastic Coil Forming and Binding Machine Suitable for Thick Notebook High Efficiency

Description:

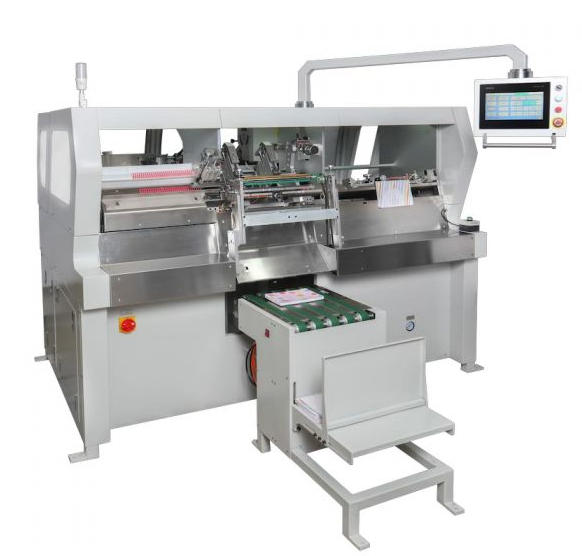

The HXPS420 Plastic Coil Forming and Binding Machine is a high-efficiency system engineered for printing factories to mass-produce plastic spiral books and notebooks of varying sizes and thicknesses. Featuring an optimized dual-station layout for high-speed stability, it seamlessly integrates plastic wire forming, inserting, cutting, and bending into one continuous operation. By utilizing direct wire feeding, the machine significantly reduces material costs and turnover waste, while its patented binding mechanism ensures smooth, precise, and reliable handling for both thin and thick publications.

HXPS420 Plastic Coil Forming and Binding Machine Suitable for Thick Notebook High Efficiency
