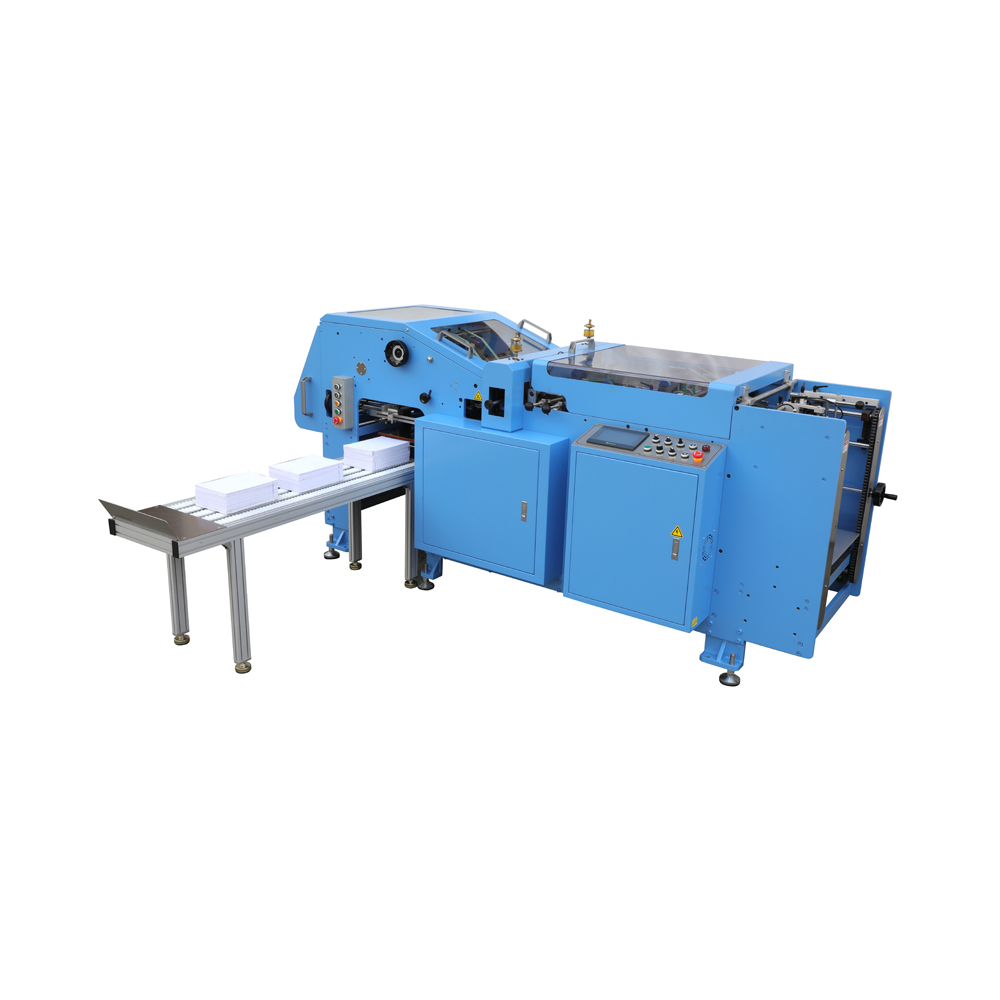

Automatic Punching Machine Convertible Conveyor For Spiral Binding Exercise Book Cover Hole

Name: Automatic Punching Machine Convertible Conveyor For Spiral Binding Exercise Book Cover Hole
Brand: HXCP
Price: 19500 USD

Quality Automatic Punching Machine Convertible Conveyor For Spiral Binding Exercise Book Cover Hole for sale

Supply Ability : 10 sets/month

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Dimensions : 2580×1200×1200mm(L×W×H)

Stacking Conveyor Length : 1200mm

Certification : CE

Power : 380V, 2.2KW

Model Number : HX450DK

Packaging Details : Stretch Film with Wooden Case

Speed : 100-130 times/min

Punching Size : A3,A4,A5

Delivery Time : 30 work days

Weight : 1300KG

Price : USD 19500 per set

Place of Origin : China

Brand Name : HXCP

Punching Thickness(One Time) : 0.5-4mm

MOQ : 1 set

Contact Now

As diversified paper and plastic products keep emerging in modern post-press industry, manufacturers need flexible punching equipment adaptable to varying material thickness and processing demands. The Automatic Punching Machine is developed to cover versatile hole punching and die-cutting tasks for multiple printing items, becoming a practical all-rounder for bookbinding and stationery factories.

Automatic Punching Machine Convertible Conveyor For Spiral Binding Exercise Book Cover Hole

This machine features remarkable adaptability for materials of different thickness grades. It efficiently handles folded signatures, printed sheets, hardcover cases, cardboard as well as PP sheet die-cutting, breaking the limit of conventional punchers that only fit single specification paper. It satisfies two mainstream punching applications including tear-hole punching for notebook inner pages and spiral hole punching for exercise book covers.

Speed
100-130 times/min

Punching Size
A3,A4,A5

Punching Thickness(One Time)
0.5-4mm

Power
380V, 2.2KW

Dimensions
2580×1200×1200mm(L×W×H)

Stacking Conveyor Length
1200mm

Weight
1300KG

Equipped with user-friendly adjustable components, the equipment realizes quick switch for different production needs. Both convertible feeder and splitting needle support flexible adjustment to match varying material thickness, enabling stable positioning and precise punching regardless of thin paper or thick hard stock.

For thick boards and hardcover cases that are hard to feed manually, the built-in vacuum sucker delivers stable automatic feeding. It avoids sheet skewing or missing feeding during high-speed operation and effectively cuts material waste caused by inaccurate positioning.

Its convertible conveyor brings dual receiving modes for flexible collection. Operators can switch freely between belt streaming collection and fixed-height stacking collection according to production plans, optimizing post-process sorting and improving overall workshop running efficiency.

Combining wide material compatibility, adjustable functional parts and dual finished-product collection modes, this automatic punching machine greatly reduces equipment investment for multi-item production. It is an ideal cost-effective upgrading option for printing plants focusing on notebooks, exercise books and various die-cut paper goods.
