Horizontal Paper Collator criss cross delivery counting stacking inline finishing connection

Name: Horizontal Paper Collator criss cross delivery counting stacking inline finishing connection
Brand: HXCP
Price: 87500 USD

Certification : CE

Brand Name : HXCP

Paper Thickness : 20-1000gsm

Packaging Details : Stretch Film with Wooden Case

MOQ : 1 set

A Min. Size : 210×50mm

Delivery Time : 30 work days

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Price : USD 87500 per set

A Stations : 5/10/15

Supply Ability : 10 sets/month

Place of Origin : China

Fastest Speed(1-1) : 2800pcs/h

A Max. Size : 900×600mm

Model Number : HXWG900

Contact Now

Efficient and accurate sheet collating is indispensable to streamline post-press book production. The Horizontal Gathering Machine stands out as a reliable collating device built to resolve irregular alignment and limited-format troubles common in traditional gathering equipment.

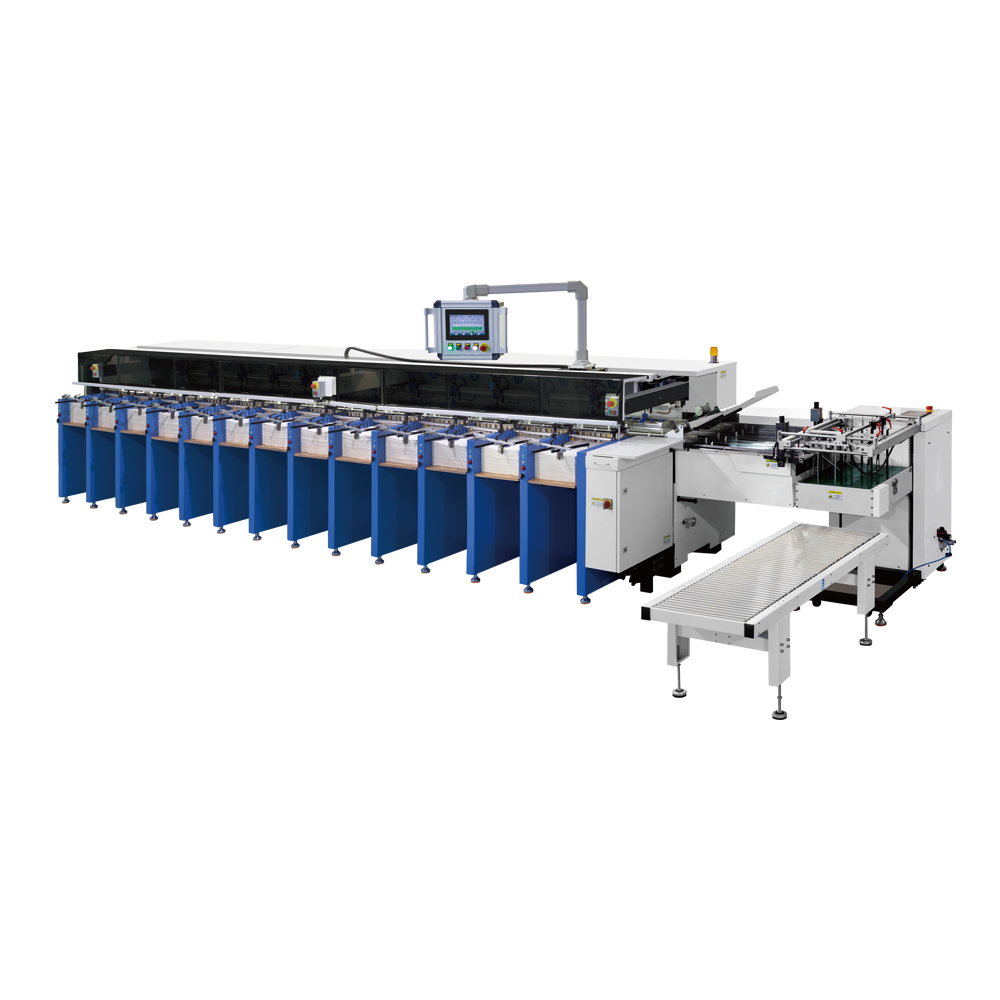

Horizontal Paper Collator criss cross delivery counting stacking inline finishing connection

Adopting advanced scale transport technology, the machine completes cyclic precise left head-edge alignment for paper and various raw materials. Such accurate positioning lays a solid foundation for neat signature gathering and avoids skewed sheets that lead to defective finished books.

It supports flexible multi-format collating inside the jogger structure, enabling two optional discharging modes including standard normal delivery and practical criss-cross delivery. Factories can switch output styles freely to match diversified binding technological requirements of different printed products.

A Max. Size
900×600mm

A Min. Size
210×50mm

A Stations
5/10/15

B Max. Size
600×480mm

B Min. Size
210×50mm

B Stations
10/15/20

C Max. Size
480×320mm

C Min. Size
210×50mm

C Stations
8/13/15/16/26

Fastest Speed(1-1)
2800pcs/h

Fastest Speed(2-1)
2800pcs/h

Fastest Speed(1-2)
5000pcs/h

Paper Thickness
20-1000gsm

Relying on mature belt transmission design, the equipment delivers stable and smooth sheet conveyance throughout continuous production runs. It effectively prevents sheet jamming, scratching or shifting, consistently keeping outstanding collating quality for long-time batch manufacturing.

Fitted with built-in counting and stacking delivery system, the machine arranges collected signatures neatly after collation. Operators save plenty of sorting time and cut extra manual labor during finished material collection.

Thanks to the reserved jogger bridge structure, users can flexibly set independent stacking output or dock the gatherer with downstream finishing machines. Perfect inline connection forms automatic production lines and greatly boosts overall workshop productivity.

With flexible delivery modes, stable belt drive and easy line expansion, this horizontal gathering machine is a cost-effective collating choice for printing houses producing notebooks, magazines and various bound printed items.
